One-of-a-Kind Aluminum “V” Beam Construction

There are many benefits to owning a V-Dock, thanks to our one-of-a-kind “V” shaped dock support beams. The “V” beam provides maximum support to multiple points across the decking, where support is needed most.  It’s a fundamental part of what makes our dock the best. Aluminum is used to reduce weight and eliminate rusting.  Shaping the aluminum into a “V” multiplies the strength, adds to the safety, and makes maintenance easy.  You won’t have to clean weeds off your dock, when you own a V-Dock.

Aluminum Frame medium sizebolt and nut 2011All Stainless Steel Bolted Construction

  • No cracked or broken welds
  • Easy to replace storm damaged parts
rain-drop

Drain Holes, Located inside V-beams, Allow water to pass through







Worry-Free Durability

Everything on V-Dock frames is bolted together at our factory in Minnesota. Using bolts allows the frame to flex, where a welded joint is rigid and can break under repeated stress. We know this because V-Dock was designed by an experienced welder. We’re so comfortable with our design, that we stand behind our quality craftsmanship with a 15-year full warranty.


exposed framepost sectional large frame

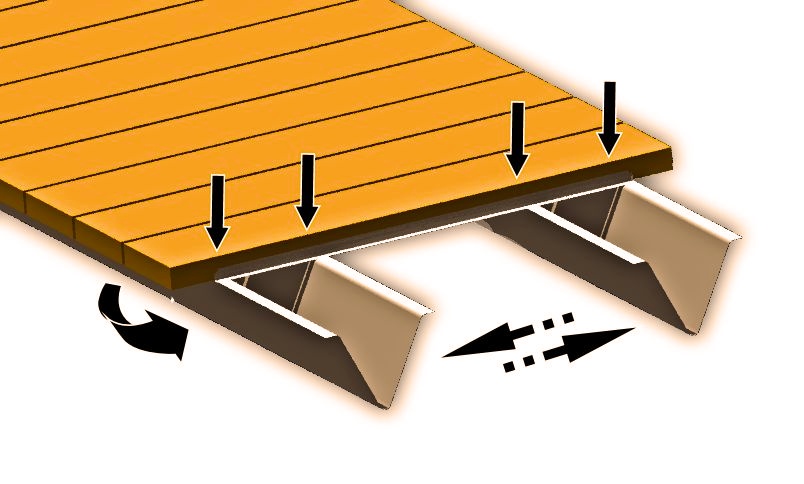

vbeam and decking 2

Maximum Support

Parallel “V” beams provide continuous support along the decking to key areas, not just at the outer edges like traditional truss systems. V-Dock’s exclusive “V” beam structure is designed to absorb movement, virtually eliminating bounce and side sway.


Marissa2001swinging legs 2

Safety in Mind

People sitting on the edge of a V-Dock, big or small, can swing their legs freely without hitting metal trusses and won’t get their foot caught in open framework.

safe-for-boats

Safe For Boats

Legs and posts are set-in from the edge of the decking.  Boaters are less likely to hit a “V” shaped boat dock support beam, since they’re angled away from the edge of the dock.  All components of a V-Dock are rounded and deburred for added safety.

Eliminates Heavy Lifting

SIZE
FRAME WEIGHT
POLY DECK WEIGHT
TOTAL
4′ X 8′
55 LB.s
50 LBS
105 LBS
4′ X 12′
70 LBS
75 LS
145 LBS
4′ X 16′
88 LBS
100 LBS
188 LBS

V-Dock’s Roll-in-Docks use shorter sections and more wheel kits than the competition. That’s one more reason why a V-Dock is lighter and easier to roll.  Using shorter sections also adds strength to the frame work, eliminating any side sway or bounce.

no weeds 2011Visually Pleasing

Our exclusive “V” beam offers clean lines and no openings for weeds to get caught in.  There’s no ugly rust either, because they’re made with aluminum beams.  As a result, your V-Dock looks nice all summer long and you won’t have to clean weeds out from under your dock.
